FOR SALE
50" Sailing Yacht
Ocean Cruising & Sailing
Model TRG-50
Introducing the
With its roots dating back to the 1880s and the experience with knowledge of the Tor Group family, the offers power, durability and luxury all together. Once you get to know it, it will be a companion you will not want to apart with.
Main Particulars
Length Over All (LOA)
Hull Length
Breadth (B)
Depth (D)
Draught (Max)
Air Draft
Displacement (Max)
Speed
Gross Tonnage
18.70 m. (Incl. bowsprit & davit)
15.42 m.
4.30 m.
1.35 m.
2.35 m. to baseline
21.00 m.
35 ton
8.0 Knots
32.56
Increased Sail Capacity
By extending the bow of the boat with the bowsprit, a larger sail area has been achieved.
Watertight compartments
With four watertight compartments, you are prepared for all possible negativities.
Even glaciers can't stop you
Produced with the durability to break even glaciers, enables safe navigation.
Perfected Design
The hull is designed by Poseidon Ltd and detailed design generated by our professional staff in their field down to the smallest detail, with the principles of ease of use, power, comfort and durability,
Open Deck
-
Outside Control & Monitoring Console
-
Foldable Dinning Table
-
Sitting Area
-
Storage area under seats
-
Hatch for rudder room
Main Deck & Upper Deck
-
Ultra Marin Anchor UA 45/100
-
Ultra Marin Anchor UA 21/46
-
10 mm Chrome Chain 70 m.
-
Lewmar Windlass 24V 2000W
-
Inflatable life raft (8 Pax)
-
Solar Panel 960 W
-
Joker Boat 4.25 m. Elc. Torqeedo Outboard Propulsion & Battery
-
Living & Dining Room (can transform to double bed by height adjustable table)
-
Inside Control & Monitoring Cockpit
-

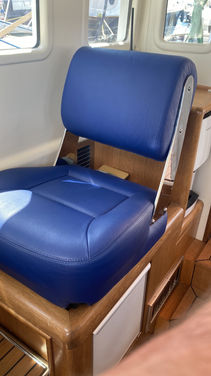

Special Product & elec. Captain Chair
Lower Deck
-
1 Master Cabin en-suite WC & Shower (double berth)
-
1 Guest Cabin (double berth)
-
Separate WC & Shower
-
Living room (can transform to double bed by height adjustable table)
-
Kitchen (All domestic type; washing machine, dishwasher, garbage disposal
-
unit, oven & microwave, gas & elc. Cooker, cooker hood, ice maker, water dispenser)
-
Fusion Entertainment System controlled by multifunction screen both sides.
Accommodation & Navigation
Accommodation
Master cabin (double berth)
Guest Cabin (double berth)
Messroom & Galley
Headroom
2.05 m in messroom corridor
Fridge Capacity
2 x 136 ltr. Dometic CRX140
Washing & Dryer Machine
Domestic 10 kg & 6kg
Dishwasher
1 pc. Domestic
Air Condition
1 x Dometic TWCX 72.000 BTU chilled Water A/C system for bridge, mess room and cabins
1 x Dometic 24.000 BTU Fresh Air Makeup Air Handler for bridge, mess room and cabins
Heating Capacity
15 kW
Spotlight
1 x 100W wireless remote control
Navigation & Communication Equipment
1 x Radar
2 x Multifunction screen with Chart plotter
1 x DSC & AIS 1 x Wireless VHF
1 x Autopilot
1 x GPS
1 x Wind Sensor
1 x Triducer, Multi sensor featuring depth, speed and temperature
1 x Fish finder
1 x Floatable VFH
1 x EPIRB
Automation System
Czone system
Entertainment System
1 x Fusion Apollo Stereo
1 x Fusion Signature Series 5 channel 1600W Amplifier
1 x Fusion Signature Series 4 channel 1400W Amplifier
2 x Fusion FM series 450W subwoofers
8 x Fusion XS series indoor speakers
3 x Fusion XS series outdoor speakers All system remote controlled.
Machinery
Main Engine
Volvo Penta D3 110 HP
Propeller
Variprop Self Folding Propeller Dia 610mm
Steering Gear
290 da Nm. 24V DC Electrohydraulic steering
Rudder
Spade type aluminium
Bow Thruster
Sleipner 24V 8kW, 160kgf
Generators
Whisper Power 12 kW, 230V/50Hz
Alternator
1 x Main Engine Coupled 24V 110A
Solar Panel
Total capacity 960 W
Batteries
4 x Mastervolt Lithium 200 A
1 x Mastervolt Gel Batt. 200 A
Redresser
2 x Mastervolt 110 A
Inverter
2 x Mastervolt 220/24 V 2 kW
Chargers
1 x Mastervolt DC/DC Bow thruster charger 35 A
1 x Mastervolt bow thruster charger 24 V
1 x Mastervolt Engine Batt. Charger 35 A
1 x Mastervolt Generator Batt. Charger 35 A
Fresh Water Maker
50 L/day
Bilge Pump
8 x 3700 GPH 24V – 14m3/h
Grey & Black Water Discharge Pump
1 x Macerator type - 24V – 2.7 m3/h
FW Pressure Set
2 x 1.2 m3/h @ 4,2 Bar 24V
FW Boiler
2 x 40LT
Sail Arrangement
Winches
2 x 1300kg Elec. & Self Trailing
2 x 2200kg Elec. & Self Trailing
Sail Furling System
2 pcs electric Furlers
Optional Spinnaker
Spinnaker
Optional
Tank Capacities
Fuel
1200 Litres
Fresh Water
550 Litres
Black Water
450 Litres
Grey Water
1050 Litres
Deck Machinery
Anchor & Chain
1 x 45kg 316L SS anchor
1 x 21kg 316L SS anchor
1 x Ø10mm 316L SS 70m Chain cable
Anchor Windlass
Max. pull: 1100 kg
Joker Boat
3.1m x 1.42m
8 hp Torqeedo Elec. Outbrd
Elec. Anchor
Gangway
2 m. length
Solar Panels
Solar Panels 960 W
Fire & Safety
Safety Equipment
1 x 6-man inflatable Life raft
Fire Fighting
NOVEC 1230 Extinguishing System for Engine room and steering gear room
Adequate Foam & Dry Powder
Extinguishers
Dual Refrigerator
It provides a sufficient storage space even for long journeys with two refrigerators, each with a capacity of 136 liters.
Insulation
With at least 10 cm thick polyurethane foam, it provides energy saving and comfort in all climate conditions, hot or cold, even on glaciers.
While the heating and cooling processes are carried out with the 72,000 BTU air conditioning system, the
is also supported by the diesel water type Webasto heaters.
Effortless control. Unmatched performance.
It provides easy and safe navigation with scenarios and a built-in camera system that are created with considering all your needs down to the smallest detail.
Functional Living Spaces
Designed for your comfort in mind, the living spaces are designed to meet all your needs.
Zez e - 50" Sailing Yacht
Zez e
Wide Range of Use
As long as you are with , you have full control over every space you are in.
Highlights
-
Providing perfect thermal insulation against -40 degree icy cold & +40 degree tropical climate conditions owing to strong polyurethane foam application.
-
Tanks and forward windows have resistance against freezing.
-
Thanks to the interconnected tanks, fuel supply can be preferred from PS or STB. Black and grey water can also be discharged from both sides.
-
Thanks to the automatic pump dischargers on both sides, fuel is prevented from overflowing and taken to the reserve tank.
-
A/C System, lights, start-up generator for battery chargers can be controlled by C-Zone Automation System.
-
A/C System runs ultra silent with lithium batteries during all night, empty batteries can be recharged by generator or solar panel which have automatic activation system.
-
Individual modes can be created and/or already set modes can be switched between "I'm in the Boat" mode, "Sailing" mode, "Engine Cruise" mode, "Sleep" mode, "Eco" mode, "Marina" mode or "Anchorage" mode by CZone Automation System.
-
The boat can be controlled either from inside or outside by dual compatible control stations
-
Fresh water tanks can be filled automatically from shore or water maker by the C-Zone automation System. The condensed water from A/C systems can also be collected into Fresh Water tanks.
-
WI-FI & remotely monitored CCTV system.
-
Large ventilation grilles that can be closed when desired.
-
Air vents equipped with filters.
-
Dedicated locations for fender storage on the chrome guardrails.
-
Customized alarm and security systems.
-
Mast Lighting projector 6 x 30 W
-
Main deck projector 2 x 100 W
-
Rotatable and remotely controlled Marinco Precision projector.
-
Manually control of rudder in case of emergency
-
Controlled lighting, entertaintment system by tablets or mobile phones.
-
Gsm booster and type – C sockets at each zones
